Category 5e (CAT5e) and Category 6 (CAT6) network cables are offered in single-conductor and stranded wire formats. A solid conductor uses a single solid strand per conductor, i.e. in a roll of (8 conductors) 4 pairs in standard CAT5e and CAT6, there would be a total of 8 solid strands. However, a stranded conductor uses multiple strands wrapped around each other on each conductor, resulting in a total of 56 strands stranded in the typical configuration of a coil of 7 strands, each consisting of 4 pairs of 8 conductors.
Solid conductor cables are ideal for structured cabling inside buildings. They can easily be inserted under wall outlets and patch panels as they only have one conductor. The cable can be perfectly installed in the insulation displacement connector. Solid cables are less useful for terminating standard RJ45 connectors when used to make patch cords. Most RJ45 connectors use two prongs that penetrate the conductor itself. This is not desirable since the solid wire has a tendency to break when the tip penetrates. Using 3-pin RJ45 connector results in a much better connection as the conductor is not broken: the 3-pin connection wraps around the connector instead of penetrating it.

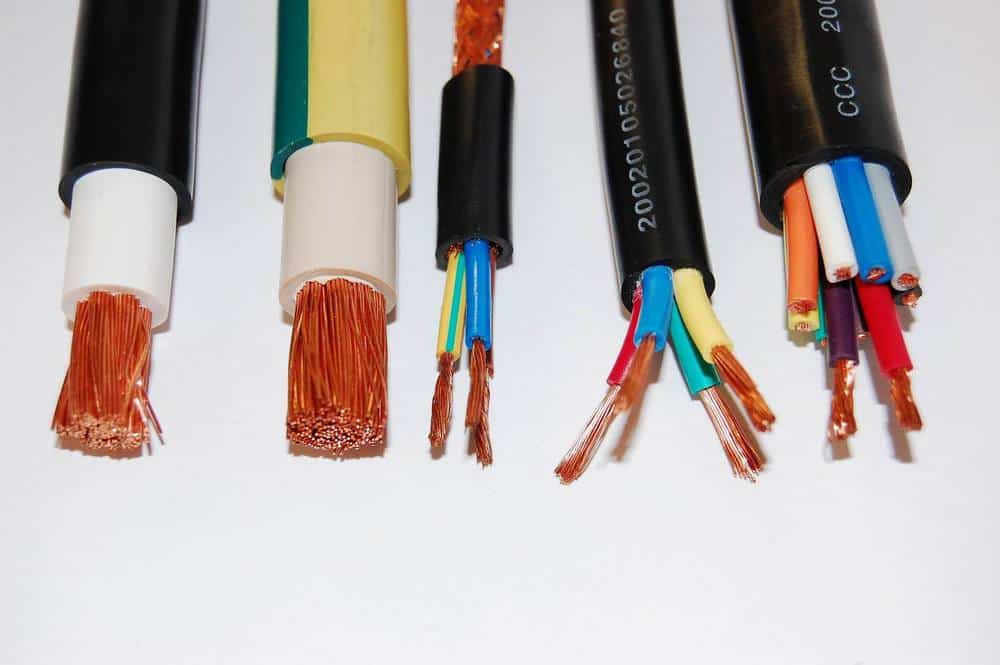

Stranded cables are much less useful for inserting into wall outlets because the strands don’t hold their perfectly round shape when pushed through an insulation displacement connector. Instead, stranded wires are often used to make patch cords. The cable itself is more flexible and rolls up well. RJ45 terminators produce a better, more flexible, and complete connection with stranded cables than with solid cables.
In short, for best results, use solid wire for wall jacks and stranded wire for crimp connectors.
What is a cable with twisted wires?
Use twisted-pair patch cords to connect network interface cards on workstations to wall plates with patch panels and other equipment, such as hubs. Made with stranded conductors, the patch cords are excellent for applications that require repetitive bending without damaging the cord. Since the attenuation is higher for stranded cables than for solid conductors, cable runs should be kept short to reduce the possibility of creating higher attenuation in the connection system. It is best to keep twisted patch cord lengths below 6.0 meters.
Conductors with stranded wires are preferred due to:
- Conductor flexibility: Much greater in the case of stranded conductors, making them easier to install.
- Lifespan due to flexibility: Longer compared to solid conductors. Stranded conductors can withstand more vibration and bend before breaking. Generally speaking, the finer the braid, the more flexible the conductor.
- Surface Damage: Damage to stranded conductors, such as scratches or punctures, will be less severe than equivalent damage to solid conductors.
- A number of twisted wires: Affects both the flexibility and the cost of the conductor. For any size of the strand, the more strands that are present, the more flexible and more expensive the conductor will be.
What is a solid wire?
For runs between two wiring centers or from the wiring center to the wall plate, choose UTP cable with standard solid conductors. These solid conductor cables, designed for horizontal and trunk runs, should not be routinely bent or twisted.
Conductors with solid strands are preferred for:
- Backbone Cabling: Solid cabling is ideal for distributed backbones, direct connections to backbone runs, and noisy CAT6 cable runs. It is perfect for connections between buildings and within buildings, in structured cabling between entrance facilities, equipment rooms, and communications closets, as the backbone consists of the transmission medium, main and intermediate connections, and terminations at these places.
- Outdoor and industrial applications: Exposure of the cable to corrosive elements, adverse weather conditions, or frequent movements. Stranded cable, on the other hand, works best for more complex uses, such as electronic devices and circuit boards, where the cable will be protected but may be bent or twisted to connect electronic components.
- Affordable – Solid cables are often cheaper than stranded cables due to their lower production costs.
- Durable: This type of cable is very resistant to damage and very easy to manufacture. The thick, unique braids of cable are highly resistant to threats and very easy to produce. Solid cables have a much more compact diameter compared to stranded cables.
